Thread: Metric, PG, G(PF), and NPT thread

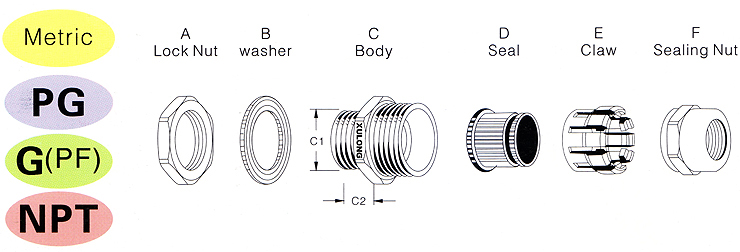

Materials: Brass with nickel plated for A. C. C1. F parts, UL approved Nylon PA66 (Flammability UL 94V-2) for E part, EPDM rubber for B. D parts.
Working temperature: -40℃ to 100℃
Features: The claws and seals of excellent design, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency.
Application: To transfer the effect of EMI.
| Thread |
Item.No. |
Cable Range
Ф(mm)
|
Thread O.D.
C1(mm)
|
Thread Length
C2(mm)
|
Spanner Size
A&F(mm)
|
Std.Pkg
(pcs)
|
|
M8 x 1.25
|
SSLX-M8 -3.8
|
2-3.8
|
8
|
5.5
|
11/11
|
20
|
|
M10 x 1.5
|
SSLX-M10 -5.5
|
2-6.5
|
10
|
6.5
|
14/14
|
20
|
|
M12 x 1.5
|
SSLX-M12S-5.5
|
2-6.5
|
12
|
7
|
14/14
|
20
|
|
SSLX-M12 -5.5
|
3-5.5
|
12
|
8
|
18/18
|
10
|
|
SSLX-M12 -7.8
|
4.5-8
|
12
|
8
|
18/18
|
10
|
|
M16 x 1.5
|
SSLX-M16S-5.5
|
3-5.5
|
16
|
9
|
18/18
|
10
|
|
SSLX-M16S-7.8
|
4.5-8
|
16
|
9
|
18/18
|
10
|
|
SSLX-M16 -7
|
4-7
|
16
|
9
|
22/22
|
10
|
|
SSLX-M16 -10
|
6-10
|
16
|
9
|
22/22
|
10
|
|
M20 x 1.5
|
SSLX-M20S-8.8
|
4-8.8
|
20
|
9.5
|
24/24
|
10
|
|
SSLX-M20S-12.5
|
7-12.5
|
20
|
9.5
|
24/24
|
10
|
|
SSLX-M20 -11
|
7-11
|
20
|
9.5
|
25/25
|
10
|
|
SSLX-M20 -14
|
9-14
|
20
|
9.5
|
25/25
|
10
|
|
M25 x 1.5
|
SSLX-M25S-11
|
7-11
|
25
|
12
|
25/25
|
10
|
|
SSLX-M25S-14
|
9-14
|
25
|
12
|
25/25
|
10
|
|
SSLX-M25 -16
|
12-16
|
25
|
12
|
30/30
|
10
|
|
SSLX-M25 -18
|
14-18
|
25
|
12
|
30/30
|
10
|
|
M32 x 1.5
|
SSLX-M32 -22
|
16-22
|
32
|
12.5
|
40/40
|
10
|
|
SSLX-M32 -25
|
18-25
|
32
|
12.5
|
40/40
|
10
|
|
M40 x 1.5
|
SSLX-M40 -26
|
21-26
|
40
|
15
|
50/50
|
10
|
|
SSLX-M40 -31
|
24-31
|
40
|
15
|
50/50
|
10
|
|
M50 x 1.5
|
SSLX-M50 -33
|
25-33
|
50
|
15
|
59/59
|
10
|
|
SSLX-M50 -41
|
31-41
|
50
|
15
|
59/59
|
10
|
|
M63 x 1.5
|
SSLX-M63 -45
|
35-45
|
63
|
17
|
69/69
|
5
|
| Brass PG Thread Cable Glands |
|
Thread
|
Item.No. |
Cable Range
Ф(mm)
|
Thread O.D.
C1(mm)
|
Thread Length
C2(mm)
|
Spanner Size
A&F(mm)
|
Std.Pkg
(pcs)
|
|
PG7
|
SSLX-PG7S-5.5
|
2-6.5
|
12.5
|
7
|
14/14
|
20
|
|
SSLX-PG7 -5.5
|
3-5.5
|
12.5
|
8
|
18/18
|
10
|
|
SSLX-PG7 -7.8
|
4.5-8
|
12.5
|
8
|
18/18
|
10
|
|
PG9
|
SSLX-PG9 -5.5
|
3-5.5
|
15.2
|
8
|
18/18
|
10
|
|
SSLX-PG9 -7.8
|
4.5-8
|
15.2
|
8
|
18/18
|
10
|
|
PG11
|
SSLX-PG11-7
|
4-7
|
18.6
|
9
|
22/22
|
10
|
|
SSLX-PG11-10
|
6-10
|
18.6
|
9
|
22/22
|
10
|
|
PG13.5
|
SSLX-PG13.5-8.8
|
4-8.8
|
20.4
|
9.5
|
24/24
|
10
|
|
SSLX-PG13.5-12.5
|
7-12.5
|
20.4
|
9.5
|
24/24
|
10
|
|
PG16
|
SSLX-PG16-11
|
7-11
|
22.5
|
9.5
|
25/25
|
10
|
|
SSLX-PG16-14
|
9-14
|
22.5
|
9.5
|
25/25
|
10
|
|
PG21
|
SSLX-PG21-16
|
12-16
|
28.3
|
12
|
30/30
|
10
|
|
SSLX-PG21-18
|
14-18
|
28.3
|
12
|
30/30
|
10
|
|
PG29
|
SSLX-PG29-22
|
16-22
|
37
|
12.5
|
40/40
|
10
|
|
SSLX-PG29-25
|
18-25
|
37
|
12.5
|
40/40
|
10
|
|
PG36
|
SSLX-PG36-26
|
21-26
|
47
|
15
|
50/50
|
10
|
|
SSLX-PG36-31
|
24-31
|
47
|
15
|
50/50
|
10
|
|
PG42
|
SSLX-PG42-33
|
25-33
|
54
|
15
|
59/59
|
10
|
|
SSLX-PG42-41
|
31-41
|
54
|
15
|
59/59
|
10
|
|
PG48
|
SSLX-PG48-45
|
35-45
|
59.3
|
17
|
69/69
|
5
|
